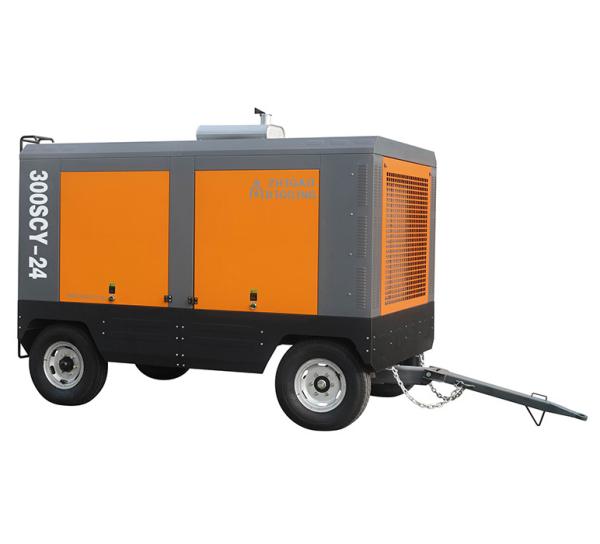

    High Pressure Series Water Well Air Compressor , Automatic Borewell Air Compressor

    Ask Lasest Price
    Brand Name : ZEGA
    Model Number : SCY diesel screw air compressor (high pressure series)
    Certification : SGS、ISO: 9001
    Price : Negotiation
    Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram, D/P
    Supply Ability : 600PCS/Year
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    High Pressure Series Water Well Air Compressor , Automatic Borewell Air Compressor

    Product features:


    1. Cummins, yuchai second best diesel engine matching.


    2. The pressure range covers 1.7-2.4Mpa, and the exhaust pressure range covers 16-29.5m3/min.


    3. Automatic control and protection system.


    4. No leakage of capacity control.


    5.Deluxe glow-in-the-dark microcomputer dashboard.


    6. All-weather high-altitude model (specially produced with an altitude of 5500m).


    7. The advanced filter with safety filter core.


    8. The power of guochuan will be upgraded comprehensively to be more energy saving and environmental protection.


    Main Technical Parameters


    Technical Specification
    Model

    Nomnal Pressure
    (Mpa)

    F.A.D(Free Air Deliver)(m3/min)

    OI Content

    (ppm)

    Diesel Power

    (HP)

    Weight(wet excl fuel)(kg)Unt Dimensions(overal)(mm)
    168SCY-17four wheels1.716≤6162(220)25503620*1950*2200
    177SCY-17four wheels1.716≤6177(240)37603720*1970*2250
    181SCY-17two wheels1.817≤6181(260)35603600*1870*2660
    186SCY-18four wheels1.818≤6191(260)37603600*1870*2660
    198SCY-18four wheels1.818≤6191(260)39003720*1970*2550
    250SCY-18four wheels1.823≤6295(400)48003810*2000*2900
    228SCY-212.1Two stage compression20≤6221(300)40603800*1870*2550
    300SCY-242.4Two stage compression30≤6309(420)49104150*1950*2900
