Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face

Putian Qideli Drilling Tools Co., Ltd.
Contact Now
    Buy cheap Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face from wholesalers

    Buy cheap Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face from wholesalers
    • Buy cheap Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face from wholesalers
    • Buy cheap Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face from wholesalers

    Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face

    Ask Lasest Price
    Brand Name : QIDELI
    Model Number : SD6-165/178/190/203
    Certification : SGS, ISO: 9001
    Price : Negotiation
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000PCS/Months
    Delivery Time : 20 dayts
    • Product Details
    • Company Profile

    Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face


    SD6 dth hammer bits for drilling rig using on mining engineering


    Qideli drill tools manufacturer has a full range of DTH drill bits with SD shanks type for a wide range of hole sizes, which are designed to match all conceivable applications for water well industries, stone quarrying, mining and construction.
    Shank types: SD4, SD5, SD6, SD8. SD10,SD12.
    DTH hammer bits hole diameter:3'', 4'', 5'', 6'', 8'',10",12"(85mm-381mm).


    SD SERIES DTH BITS PARAMETERS:


    SD shank BitsBit Dia.No.
    Air Holes
    Gauge
    Buttons
    Front
    Buttons
    Weight
    (Kgs)
    Part No.
    mminch
    SD4
    1054 1/8"26×φ145×φ139.0SD4-105
    1104 1/4"27×φ136×φ139.5SD4-110
    1154 1/2"27×φ146×φ139.8SD4-115
    1204 3/4"28×φ146×φ1411.5SD4-120
    127528×φ147×φ1412.3SD4-127
    SD5
    1335 1/4"27×φ166×φ1415.5SD5-130
    1405 1/2"27×φ187×φ1416.0SD5-140
    1465 3/4"28×φ187×φ1416.5SD5-146
    1526"28×φ188×φ1417.0SD5-152
    1656 1/2"28×φ188×φ1619.0SD5-165
    SD61526"28×φ168×φ1626.0SD6-152
    1656 1/2"28×φ188×φ1628.0SD6-165
    1787"28×φ188×φ1831.0SD6-178
    1907 1/2"39×φ189×φ1634.0SD6-190
    2038"39×φ189×φ1836.0SD6-203
    SD8
    1957 11/1639×φ189×φ1632.0SD8-195
    2038"39×φ189×φ1841.0SD8-203
    2168 1/2"210×φ1812×φ1649.0SD8-216
    25410"311×φ1817×φ1671.0SD8-254
    30512"412×φ1829×φ1695.0SD8-305
    SD10
    25410"312×φ1820×φ16108.0SD10-254
    30512"412×φ1836×φ18125.0SD10-305
    31112 1/4"412×φ1836×φ16130.0SD10-311
    31812 1/2"412×φ1838×φ16142.0SD10-318
    33013"416×φ1842×φ16155.0SD10-330
    SD1230512"412×φ1836×φ16156.0SD12-305
    31112 1/4"412×φ1836×φ16168.0SD12-311
    33013"416×φ1842×φ16180.0SD12-330
    35614"416×φ1948×φ16191.0SD12-356
    38115"416×φ1948×φ18200.0SD12-381


    Advantages:
    1. The carbide we using the brand of KD10.This carbide is using 's technique.
    2. We use high quality special steel and mature and stable heat treatment process.
    3. In addition, we have more than 20 years of drilling equipment production experience.
    Is right to chose us-Putian Qideli Drilling Tools Co.,Ltd.

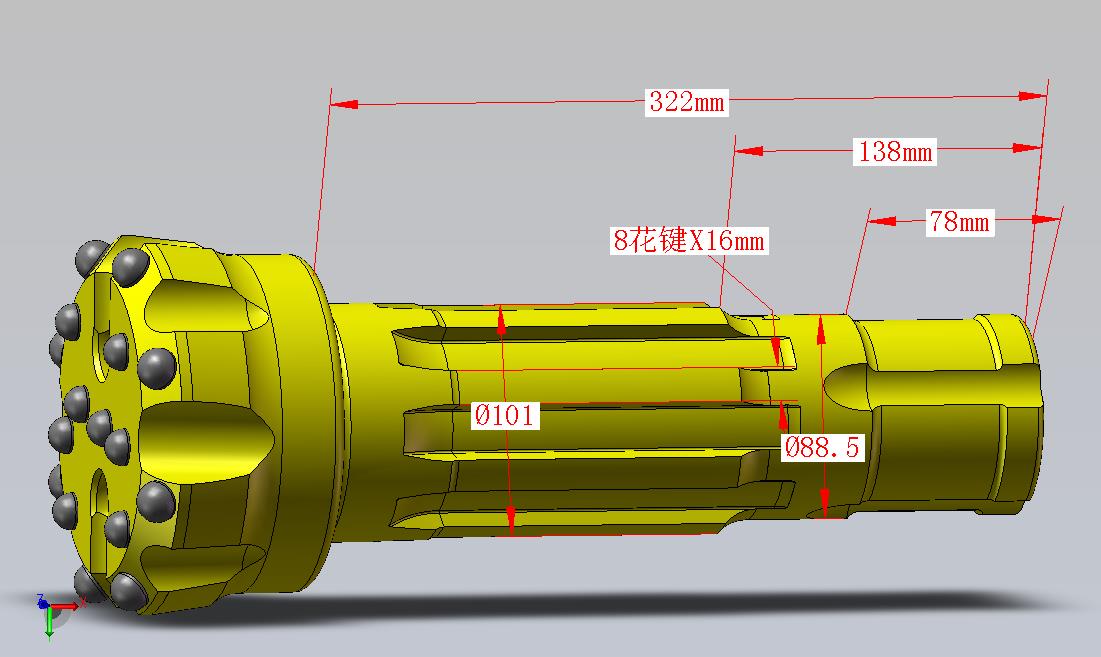

    Main dimension:


    About Us:
    Putian Qideli drilling tools Company was founded in 2010, is specialized in the production and operation of mining drilling tools, research and development-oriented enterprises. 20 years, the production of chisel-bits, cross-bits, button bits, thread bits, PDC bits high and low air pressure DTH bits, DTH hammer, drill rods, etc, are widely used in energy, metallurgy, geology, coal, water conservancy, chemical industry and the mining, road construction, has been unanimously endorsed by the majority of users. Basing on our complete product and excellent quality, We have a certain domestic markets, also export to Russia, Japan, Southeast Asia and other regions alsowhile
