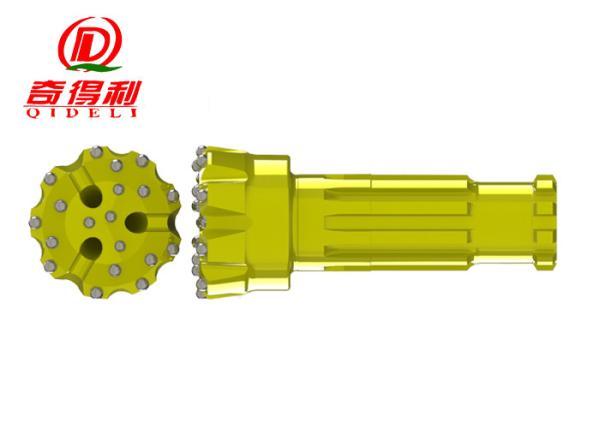

Water well drill bits without foot vlave type HD85A-203mm , Pneumatic drill bit

DTH(Down the Hole) hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling.
Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs.

Product specification:

Bit Face Shape Selection:
Drop Center:
For High penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure. Maximum hole deviation control.
Concave Face:
The all round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
Convex Face:
For high penetration rates in soft to medium hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
Double Gauge Face:
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
Flat Face:
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
Pineapple Face:
The Pineapple Bit can be dressed with ballistic buttons for use in soft to medium hard formations where fractured rock can be expected, or can be supplied with spherical buttons for hard and abrasive formations.
DTH drills are classified into high-pressure down-the-hole drills and low-pressure down-the-hole drills. At present, the polycrystalline diamond downhole drill bit is better, with high strength, high hardness, strong wear resistance, impact resistance and good self-sharpening, and its wear resistance is 5-20 times higher than that of cemented carbide. You can consider ROSCHEN Diamond DTH bit, improve work efficiency, reduce consumption, reduce the time to replace the drill and get lower drilling cost!
Main dimension:
