    CIR 90 Series DTH Drill Bits For Mining Gauge 14mm Size YK05 Round Button

    Ask Lasest Price
    Brand Name : QIDELI
    Model Number : CIR90
    Certification : SGS 、ISO9001-2008
    Price : Negotiation
    Payment Terms : T/T, Western Union, , L/C
    Supply Ability : 5000 PCS ONE MONTH
    Delivery Time : 1~15 work days
    • Product Details
    • Company Profile

    CIR 90 Series DTH Drill Bits For Mining Gauge 14mm Size YK05 Round Button

    Our Advantages as below:

    1. High quality steels materials. Steel is from TIMKEN and Tungsten carbide are YK05, or T6 from Element Six in Germany
    2. Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer.
    3. Advanced heat-treatment equipment: multipurpose furnace heat treatment.
    4. Completed moulding (tooling ) departments with many molds available.
    5. Professional R&D team,completed quality system.
    6. Strict Quality-Check Systems.

    Product Description

    CIR series hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a spline drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes. Our variety of Down the Hole (DTH) bits is manufactured using high quality materials to provide you with a fine balance between penetration capability and bit life.

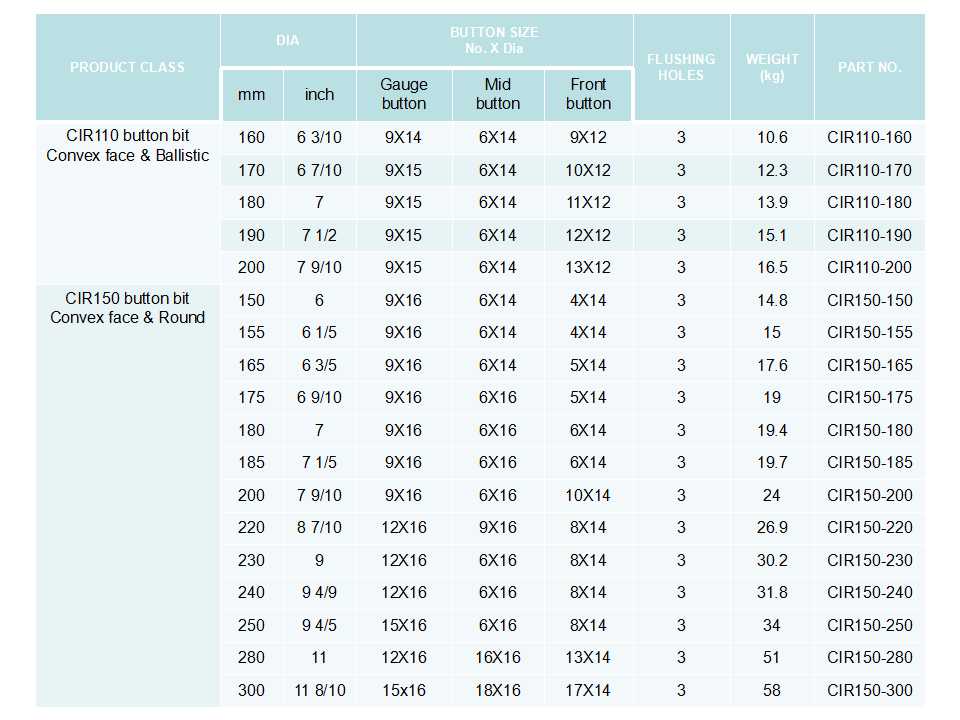

    Shank type: CIR50,CIR60,CIR70,CIR80,CIR90,CIR110,CIR130,CIR150,CIR170


    CIR76,CIR90 and CIR110 are most widely used.



    How to choose the suitable head face of the DTH drill bit?

    1. Concave:
    Suitable for all kinds of formation, especially for deep well drilling, perpendicularity of the hole is wonderful.
    1. Convex:
    Suitable for the formation of moderate hardness stratum, drilling efficiency is good, borehole perpendicularity is moderate.
    1. Flat:
    Suitable for special hard formation stratum, especially for fracture, crack spacing and complex formation drilling effect is very good, has the good perpendicularity of the borehole.
